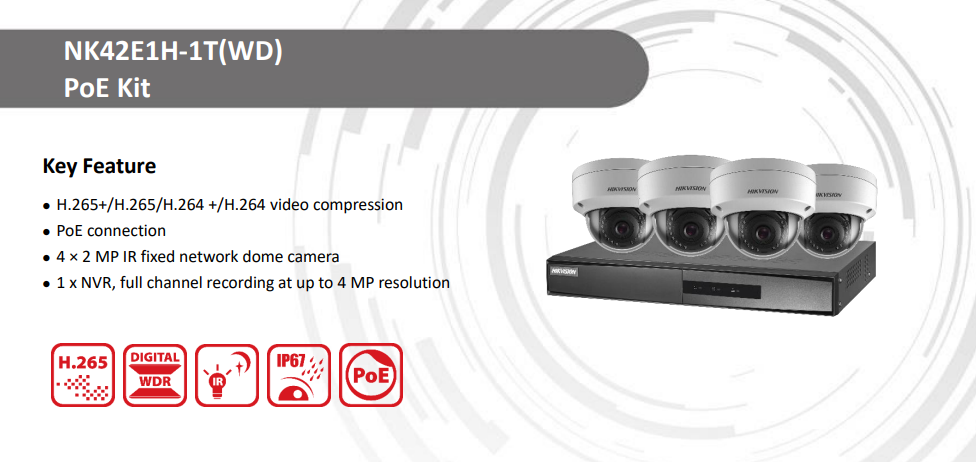

CCTV Camera 2MP Dome PoE Kit with installation

Camera General:

• Lens Type: Standard lens

• IR Type: Infrared (IR)

• Compression Standard: H.264, H.265

• Image Quality: High resolution, clear imaging

• Network: Ethernet support for IP cameras

• Interface: Standard interface for easy connectivity

•

Camera Features:

• Image Sensor: 1/2.8″ Progressive Scan CMOS

• Minimum Illumination: 0.028 Lux (low light sensitivity)

• Shutter Speed: Adjustable from 1/3 s to 1/100,000 s

• Day & Night: Equipped with IR cut filter for enhanced night vision

• WDR (Wide Dynamic Range): Supports DWDR (Digital Wide Dynamic Range) for clear images in varying lighting conditions

• Angle Adjustment:

  • Pan: 0° to 355°

  • Tilt: 0° to 75°

• Protection Level:

  • IP67 rated for weather resistance

  • IK10 for impact protection

• Material:

  • Front Cover: Plastic

  • Back Cover & Bracket: Metal

• Wi-Fi Support: Not available (wired connection only)

Power Supply & Consumption:

• Power Supply:

  • 12 VDC ± 25%, Φ 5.5 mm coaxial plug or PoE (802.3af, class 3)

• Power Consumption:

  • 12 VDC, 0.4 A, Max: 5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W

Environmental Specifications:

• Working Temperature:

  • -30 °C to 60 °C (-22 °F to 140 °F)

This camera is designed for versatile use in various environments, with strong protection against weather conditions and impact, making it ideal for both indoor and outdoor surveillance needs.
