Ubiquiti U7 Long-Range Access Point U7-LR

Ubiquiti U7 Long-Range Access Point U7-LR

The Ubiquiti U7 Long-Range Access Point U7-LR is a compact WiFi 7 access point designed for modern offices, hospitality venues, schools, and advanced smart homes. It delivers strong long-range coverage, supports dense client environments, and integrates smoothly with UniFi Network. As a result, it helps you provide fast, reliable, and secure wireless connectivity throughout your space.

Product Overview

This long-range UniFi U7 access point combines WiFi 7 performance with a discreet, ceiling-mount design that blends into almost any interior. In addition, its 160 m² (1,750 ft²) coverage area and support for 300+ clients make it ideal for high-density deployments where stability matters.

Moreover, the U7-LR WiFi 7 access point uses 5 spatial streams with advanced MU-MIMO to handle demanding applications such as video conferencing, streaming, and cloud services. It is managed through the UniFi Network application, so you can configure, monitor, and optimize multiple APs from a single interface.

Key Features

• WiFi 7 (802.11be) radio for next-generation wireless performance and lower latency.

• Dual-band 2.4 GHz and 5 GHz operation for flexible client compatibility.

• Up to 4.3 Gbps maximum data rate on 5 GHz and 688 Mbps on 2.4 GHz for high-throughput workloads.

• 5 spatial streams and MU-MIMO support to serve many users at once with consistent performance.

• Long-range coverage up to 160 m² (1,750 ft²), helping you reduce dead zones in larger rooms.

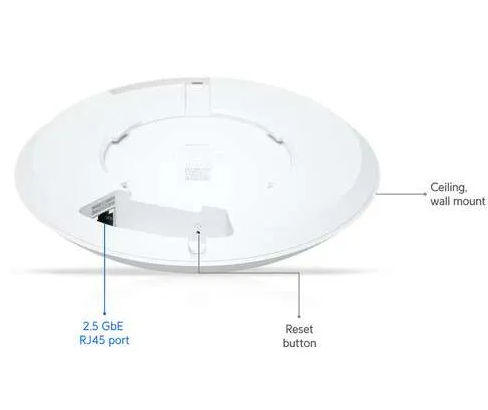

• 2.5 GbE RJ45 uplink port to fully utilize the available wireless capacity and simplify cabling.

• Ceiling or wall mounting with the included plastic plate for clean, professional installations.

• PoE-powered design (42.5–57V DC) for flexible placement using a compatible PoE switch or injector.

• Advanced roaming features, including 802.11r, 802.11k, and 802.11v, to support seamless client movement.

• Guest access capabilities such as captive portal, vouchers, payment-based authentication, and PPSK.

• Security and control tools including client isolation, guest network isolation, VLAN assignment, and RadSec.

• WiFi scheduling and speed limiting features to align wireless access with your usage policies.

Technical Specifications

• Brand: Ubiquiti

• Model: Ubiquiti U7 Long-Range Access Point U7-LR

• Form factor: Compact, ceiling or wall-mount access point

• Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7″)

• Weight: 448 g (15.8 oz)

• WiFi standard: WiFi 7 (802.11be), backward compatible with WiFi 6, WiFi 5, and 802.11n

• Spatial streams: 5

• MIMO configuration: 5 GHz 3×3 DL/UL MU-MIMO; 2.4 GHz 2×2 DL/UL MU-MIMO

• Coverage area: 160 m² (1,750 ft²)

• Max client count: 300+ recommended

• Max data rate: 5 GHz up to 4.3 Gbps (BW160); 2.4 GHz up to 688 Mbps (BW40)

• Antenna gain: 5 GHz 6 dBi; 2.4 GHz 4 dBi

• Max TX power: 5 GHz 27 dBm; 2.4 GHz 26 dBm

• Channel bandwidths: HT/VHT/HE/EHT 20/40/80/160 MHz

• Networking interface: (1) 2.5 GbE RJ45 port

• Power method: PoE, 42.5–57V DC; max power consumption 14W

• Management: UniFi Network application (Ethernet)

• Enclosure material: Polycarbonate, aluminum alloy

• Mount material: Polycarbonate, galvanized steel (SGCC)

• LEDs: System status (white/blue)

• Operating temperature: -30 to 50° C (-22 to 122° F)

• Operating humidity: 5 to 95% noncondensing

• Compliance: NDAA compliant

• Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356

Why Choose This Access Point?

Choosing the right AP is essential for stable wireless networks. Therefore, this Ubiquiti U7 LR long-range AP offers an excellent balance of performance, coverage, and management simplicity. In addition, its WiFi 7 capabilities prepare your environment for future client devices and new applications that demand low latency and higher throughput.

Moreover, the UniFi ecosystem lets you scale from a single access point to site-wide deployments while keeping control in one dashboard. As a result, you can monitor traffic, adjust RF settings, and apply guest policies without complex command-line configuration. Finally, robust security options and VLAN integration help you separate staff, guest, and IoT traffic with confidence.

Final Recap & Call-to-Action

The Ubiquiti U7 Long-Range Access Point U7-LR delivers long-range WiFi 7 performance, PoE-powered flexibility, and cloud-ready management for busy environments. In addition, it supports advanced roaming, guest access, and network security features to keep users connected and data protected. Add to Cart or contact us for tailored deployment guidance
