Ubiquiti U7-Pro-XG WiFi 7 Access Point

Ubiquiti U7-Pro-XG WiFi 7 Access Point

Experience next-generation wireless performance with the Ubiquiti U7-Pro-XG Access Point, a premium solution built for ultra-fast speeds, low latency, and massive device capacity. Powered by the latest Wi-Fi 7 (802.11be) technology and full 6 GHz support, this access point is engineered for demanding residential, enterprise, and commercial environments where performance matters most.

With 6 spatial streams and a powerful 10 GbE uplink, the U7-Pro-XG delivers blazing-fast data transfer and smooth connectivity even in high-density deployments. Covering up to 140 m² (1,500 ft²) and supporting 300+ simultaneous users, it ensures stable, high-quality connections for offices, hotels, schools, and smart homes.

Designed with simplicity and reliability in mind, the U7-Pro-XG supports PoE+, allowing for clean, hassle-free installation with a single cable for power and data. Backed by Ubiquiti’s reputation for innovation and robust UniFi ecosystem integration, this access point provides exceptional scalability, security, and management flexibility.

🔹 Key Features

• Latest Wi-Fi 7 (802.11be) with 2.4 GHz, 5 GHz, and 6 GHz bands

• Ultra-fast speeds up to 5.8 Gbps on the 6 GHz band

• 10 Gigabit Ethernet uplink for high-performance backhaul

• 6 spatial streams for efficient multi-device connectivity

• Supports 300+ users – ideal for high-density environments

• PoE+ powered for simplified installation

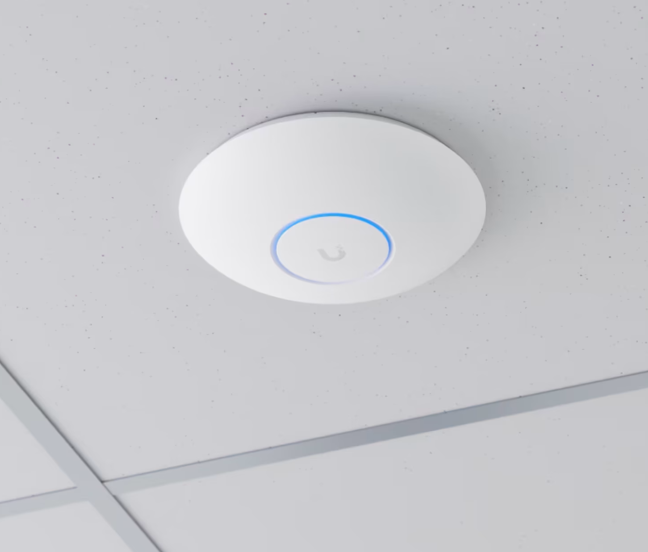

• Ceiling or wall mountable with included mounting kit

• Enterprise-grade security with PPSK, VLAN, and Hotspot 2.0 support

📊 Technical Specifications

Wireless & Performance

• Wi-Fi Standard: Wi-Fi 7 (802.11be)

• Frequency Bands: 2.4 GHz / 5 GHz / 6 GHz

• Max Data Rates:

  • 2.4 GHz: 688 Mbps

  • 5 GHz: 4.3 Gbps

  • 6 GHz: 5.8 Gbps

• Spatial Streams: 6

• MIMO: Multi-User MIMO

• Coverage Area: 140 m² (1,500 ft²)

• Maximum Users: 300+

Networking & Interfaces

• Ethernet Port: 1 × RJ-45

• Ethernet Speeds: 1 / 2.5 / 5 / 10 Gbps

• Uplink: 10 GbE

• Wireless Meshing: Yes

• Fast Roaming: Yes (802.11k/r/v)

Power & Environment

• Power Method: PoE+

• Max Power Consumption: 22 W

• Operating Temperature: -30°C to 40°C

• Operating Humidity: 5% – 95%

Design & Build

• Color: White

• Material: Metal & Polycarbonate

• Mounting: Ceiling or Wall

• Antenna: Internal, Integrated (6 dBi max)

• Dimensions: 206 × 206 × 32.5 mm

• Weight: 750 g

Certifications

• CE, FCC, Industry Canada (IC)

✅ Ideal For

• Offices & enterprises

• Hotels & hospitality

• Retail & public venues

• High-end residential networks

Upgrade your network with the Ubiquiti U7-Pro-XG and unlock the full potential of Wi-Fi 7—faster, smarter, and ready for the future.
